Extruded Anodes And Magnesium Mg Ribbon Corrosion Protection

Name: Extruded Anodes And Magnesium Mg Ribbon Corrosion Protection
Brand: HIGH BROAD
Price: 1 USD

Buy cheap Extruded Anodes And Magnesium Mg Ribbon Corrosion Protection product

Brand Name : HIGH BROAD

Model Number : Custom-made high quality American standard C/D/S shape Mg anode , Zn anode, Al anode for cathodic protection

Certification : ASTM G97

Place of Origin : China

MOQ : 100 Kilograms

Price : TBA

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal

Supply Ability : 300 Metric Ton/Metric Tons per Month

Delivery Time : 1 FCL:14 days

Packaging Details : Anode on pallet with steel bundles

Application : Used in water boiler, heat exchanger, vopourater, water container, etc.

Grade : AZ63C or High potential

Usage : Corrosion protection

Future : High purity raw material

standard : ASTM

Extruded anode : all sizes of Extruded Anodes and Magnesium Ribbon

Anode 1 : Anode rod

Anode 2 : Magnesium ribbon anode

Contact Now

Extruded Anodes And Magnesium Mg Ribbon Corrosion Protection

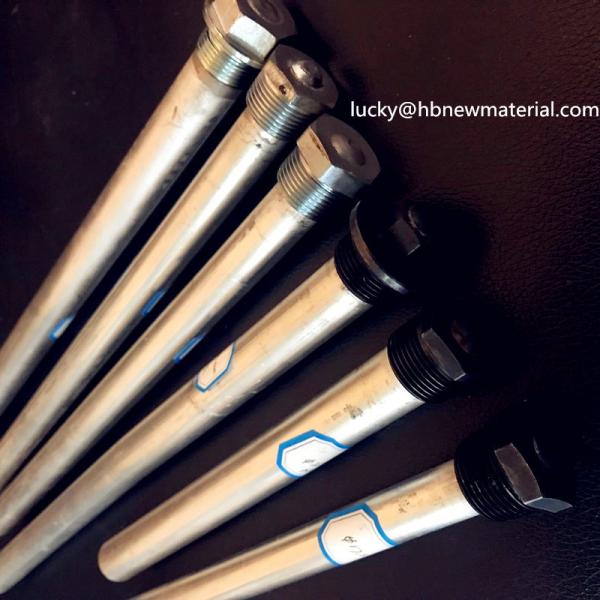

Extruded anode

Magnesium anodes are used in the Corrosion Control industry. In a process known as Cathodic Protection, Sacrificial Anodes are connected by a cable to an underground natural gas pipe, an oil or water pipe, a propane tank or other such structure. The anode acts like a battery, giving off a low-voltage electrical current so that, over time, the anode corrodes but the structure that is being protected remains like new. Cathodic Protection using magnesium and other types of anodes prevents costly repairs and leaks. Extruded Magnesium Anodes are used to extend the life of home and commercial water heaters.

We supply D-Shaped Cast Magnesium Anodes of both High Potential and Regular Potential (AZ 63C) alloys. The sizes range from 3D3 to 48D5 and 60-pound anodes. Round High Potential one-pound Anodes are also available, as are condenser anodes and all sizes of Extruded Anodes and Magnesium Ribbon.

Specification

HIGH BROAD Magnesium anodes are produced in a variety of shapes and sizes for use in anti-corrosion protection of such projects are oil pipelines, gas pipelines, water supply pipes and drain-pipes, underground cables, chemical plants, communication, harbors, watercrafts and reservoir strobe.

• Item name: Magnesium sacrificial anode

• The advantage: AZ63, High Potential (Mg-Mn) The best quality and best price.

• Raw materials: AZ31series,AZ63series and so on;

The characteristic of sacrificial anode magnesium

High electrochemistry performance

Average anode consuming

Long using time

High unit power output

Chemical compositions Extruded Magnesium Rod Anodes:

Type	Mg	Al	Mn	Zn	Ca	Si	Cu	Ni	Fe	Other Imp.
Type	Mg	Al	Mn	Zn	Ca	Si	Cu	Ni	Fe	Each	Total
AZ31	Bal	2.5-3.5	0.2-1.0	0.7-1.3	0.04	0.05	0.01	0.001	0.005	0.001	0.30
Mg-Mn	Bal	0.01	0.5-1.3	-	-	0.05	0.02	0.001	0.03	0.05	0.30

Electrochemical properties of Extruded Magnesium Rod Anodes:

Item

Product

Open-circuit voltage (-V)

Close-circuit voltage (-V)

Actual capacitance (A·h/g)

Current efficiency (%)

AZ31

1.50-1.55

1.45-1.50

≥1.105

≥50

Mg-Mn

1.70-1.75

1.57-1.62

≥1.100

≥50

Normal Size of Extruded Magnesium Rod Anodes:

Diameter Inch (mm)	Theoretical weigh (g/m)
0.551 (14)	330
0.630 (16)	420
0.689 (17.5)	477
0.748 (19)	542
0.827 (21)	668
1.024 (26)	1005
1.300 (33)	1580

FAQ

Application field

Corrosion protection for

Electric water heater

Oil transportation and gas transmission in underground and fresh water

Line pipe for draining away water

Underground cable

Chemical industry

Communication

Dock and harbour

Boats and ships

Reservoir gate
